Production process: Incoming scrap steel inspection - Adding alloy materials - Electric furnace smelting - Pouring into the mold - Mold ejection - Refurbishment - Electric furnace quenching - Cooling - Electric furnace tempering - Out-of-the-furnace packaging
Description

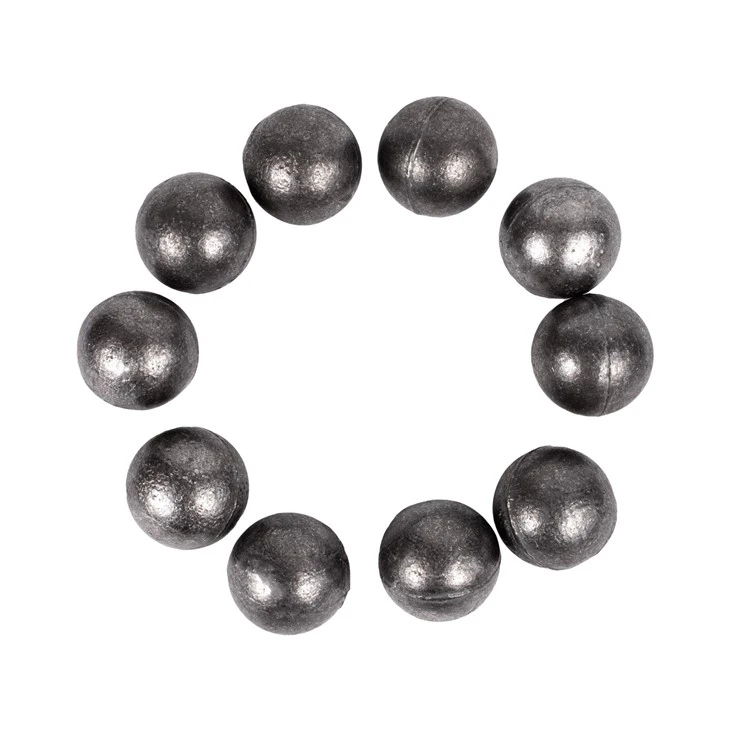

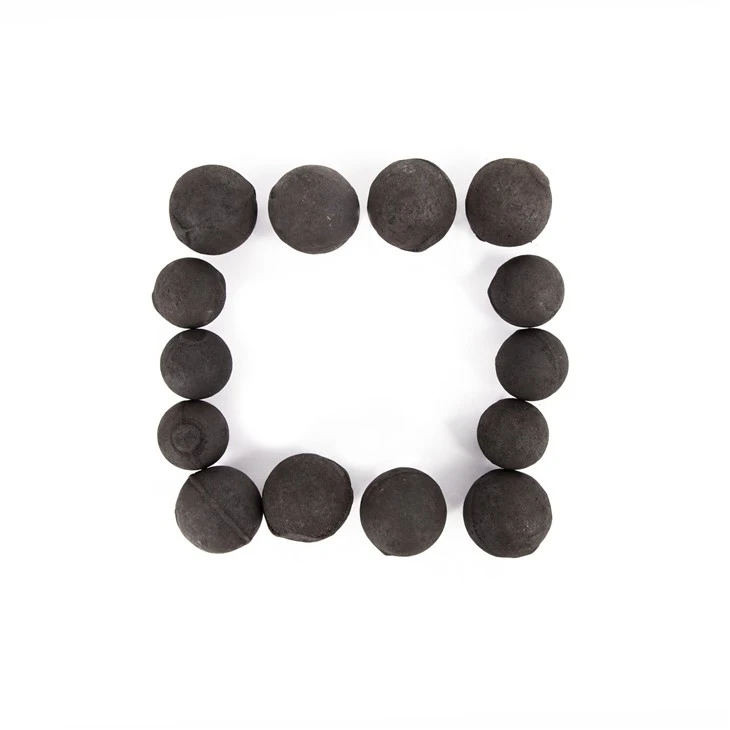

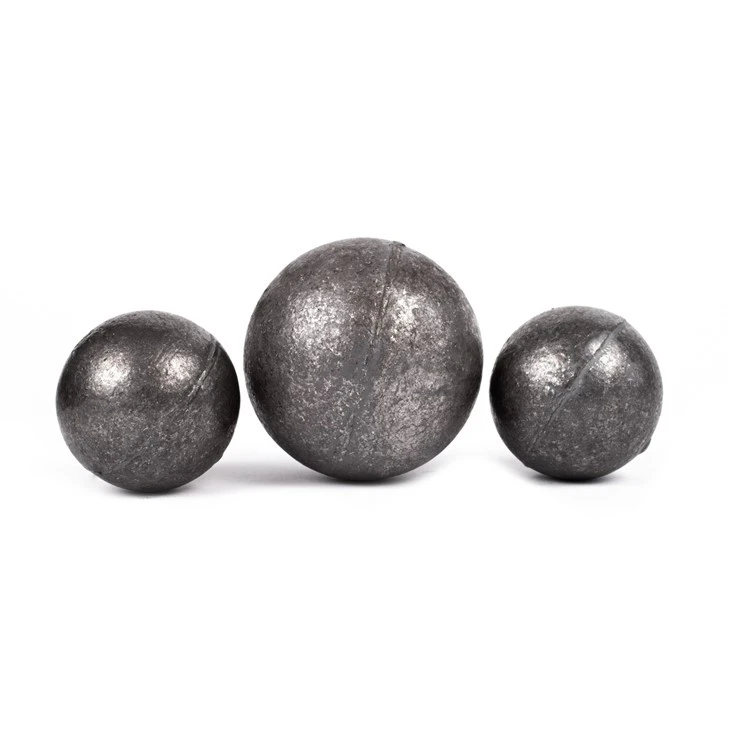

As one of the most critical parts for grinding mineral ores in mining industry, this Cast Grinding Iron Ball aims at crushing materials at a high speed and grinding them into fine powder. It is made of steel added with alloy through casting process and surface heat treatment, including hardening, tempering and quenching. This can make its surface produce uniform and fine-grained microstructure, improve its wear resistance, and ensure that it can withstand the harsh environment during grinding.
Features
1. Polishing treatment: This Cast Grinding Iron Ball adopts grinding, polishing, deburring and surface ring treatment in the production process to improve the surface roughness of the steel ball and make it uniform.

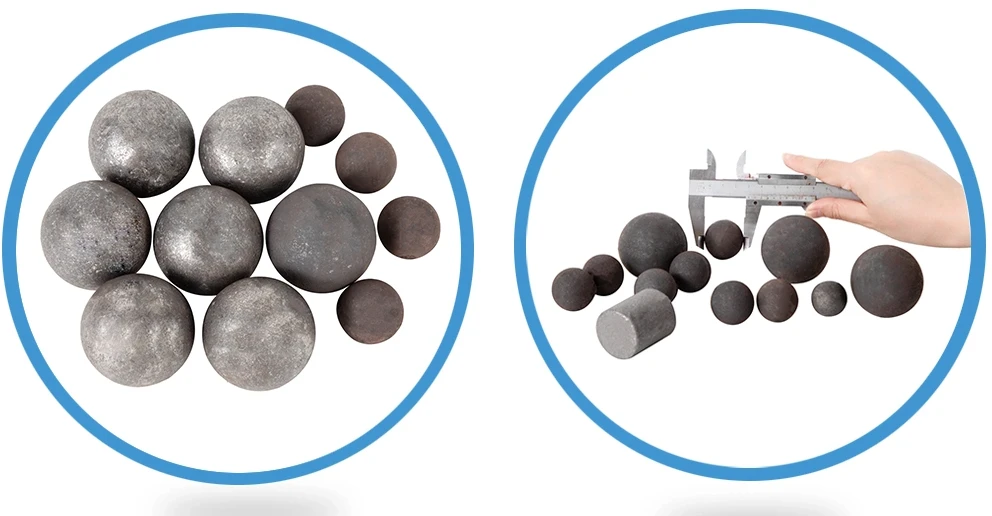

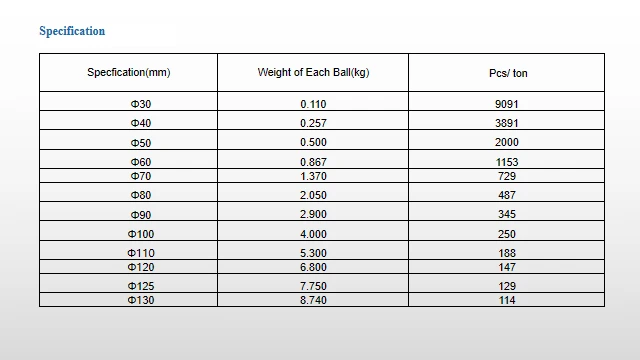

2. Different sizes: Its diameter ranges from 17 mm to 160 mm, which makes it suitable for grinding different materials. Different sizes of steel balls can achieve different grinding effects, for example, small diameter steel balls are suitable for fine grinding, while large diameter steel balls are suitable for coarse grinding.

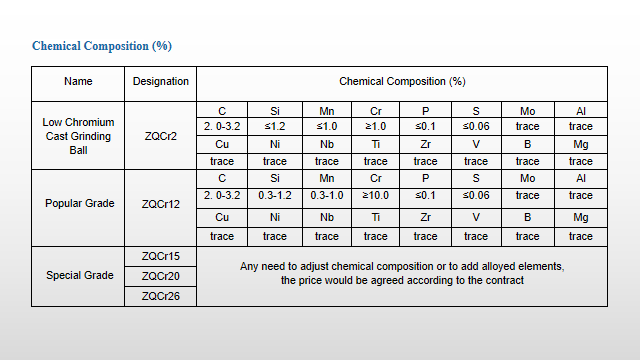

3. Optional hardness: The chromium content of this grinding ball is different, from 1% to 26% to adapt to different grinding conditions. The steel ball with high chromium content has excellent hardness and wear resistance, and is suitable for large grinding media and working environment. The grinding ball with lower chromium content can adapt to more complex abrasive composition and more loaded working conditions.
4. 100% inspection: For each batch of steel balls, we carry out final inspection according to the process requirements, such as roundness, hardness, metallography and stress of steel balls. This can ensure that the quality of each batch of steel balls can meet the needs of users in terms of surface and internal details.
